TPA3116D2 Digital Power Amplifier Board 2.1 Channel, U Disk Hi-Fi Audio Bluetooth 5.0 2*50W+100W Super Bass Audio Module

Rs. 200.90

~~Rs. 251.10~~ Rs. 200.90

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color WHITE

Quantity

TPA3116D2 Digital Power Amplifier Board 2.1 Channel, U Disk Hi-Fi Audio Bluetooth 5.0 2*50W+100W Super Bass Audio Module

Parameter:

Product name: 2.1 channel bluetooth audio amplifier board

Power supply: DC5-26V/10A or above

Channel: 2.1 channel

Bluetooth version: 5.0

Audio input: Bluetooth+AUX+U disk+USB sound card

Audio output: left and right channels + subwoofer + 3.5mm interface stereo output

Volume adjustment: high-end encoder knob adjustment

Frequency range: 20Hz-30KHz

SNR: 92dB

Output power: 50W*2(left and right channels)+100W(subwoofer)

Satellite box (left and right channel) suitable speaker: 10W-100W /4Ω-8Ω

Subwoofer (subwoofer) suitable speaker: 20W-200W /2Ω-8Ω

Protection mechanism: static electricity, overvoltage, undervoltage, overheating, DC detection and short circuit protection

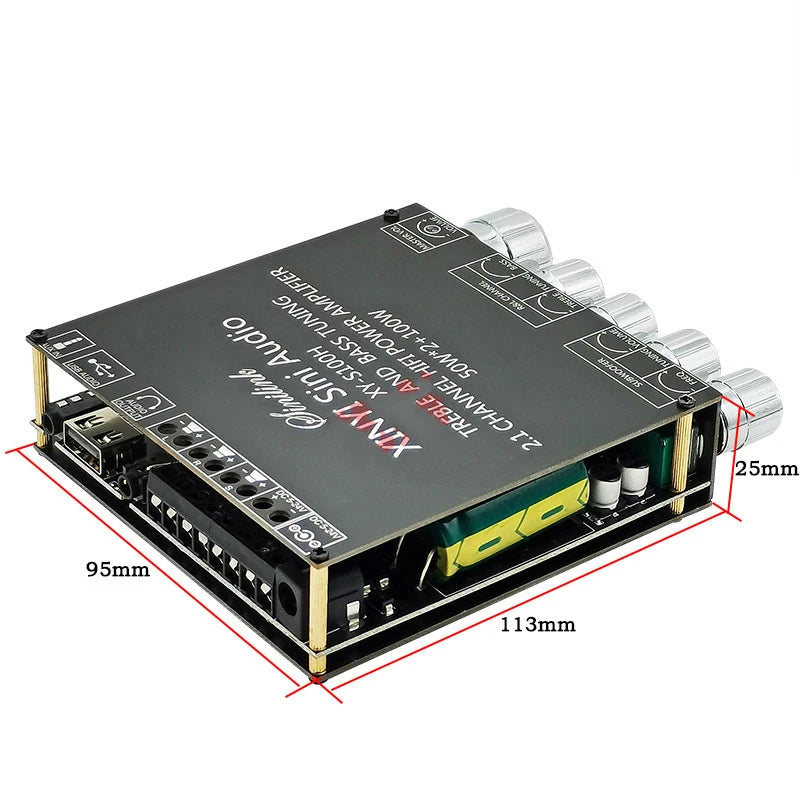

Size: 113mm*95mm*25mm
